Geometric & Shaped Windows

Geometric & Shaped Windows in South Miami, FL | Winslow Windows & Doors

Geometric and shaped windows bring something rare to a South Miami home: a true architectural signature. We’re talking triangles, hexagons, octagons, circles, arches, and fully custom curves, all fabricated with laminated impact glass and engineered for Miami-Dade’s High-Velocity Hurricane Zone. These are not off-the-shelf products. Every unit is custom-fabricated to your exact opening. Winslow Windows & Doors supplies and installs these across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, so you get the configuration you want without compromising on wind-zone protection. Call (850) 930-1813 to discuss your opening.

Call (850) 930-1813

Product Overview - Geometric & Shaped Windows

South Miami homes lean into design. Barrel-tile roofs, arch-topped entryways, turret corners, gable-end circles. Standard rectangular windows can’t always serve those openings well. Geometric and shaped windows fill that gap. Triangular, hexagonal, octagonal, and curved impact-glass configurations are custom-fabricated to your opening, giving you architectural detail without sacrificing wind-zone protection.

The frame profiles we use for shaped units are built from aluminum or vinyl, both proven in Florida’s salt-and-sun environment. But the important engineering is in how the glass and frame work together. Each unit uses laminated impact glass with a PVB interlayer that holds the glass in the frame under impact. The frame is reinforced to carry the glass under sustained wind pressure, so a circle or arch performs the same as a rectangle in the same wall. You’re not trading protection for looks. You’re getting both.

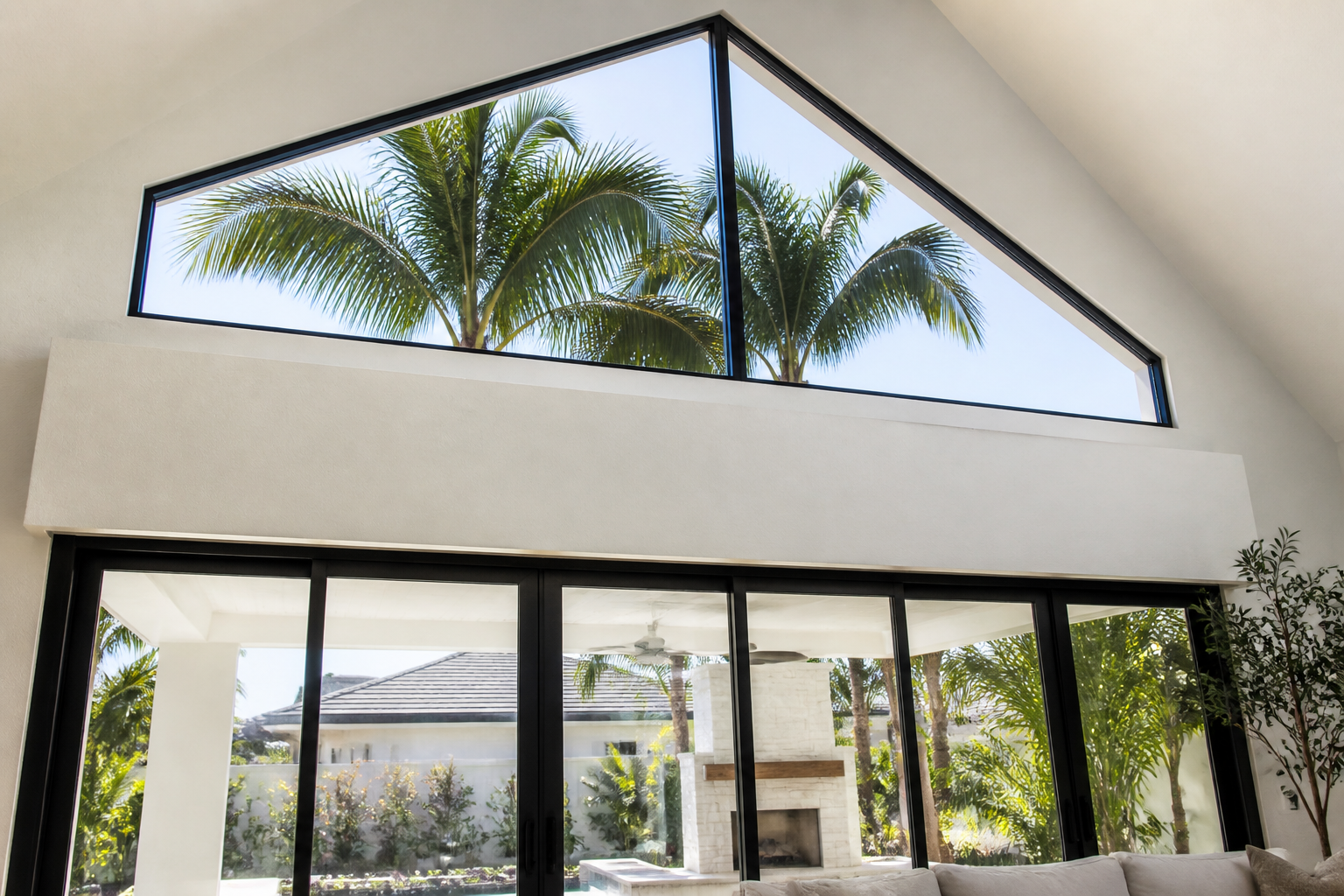

Where do these units show up in South Miami? Gable-end circles above entry doors, half-rounds topping picture windows, octagons in stairwells, triangles finishing rooflines, and fully custom curved units for one-off architectural openings. We’ve installed shaped windows in neighborhoods from Pinecrest to Kendall to Coral Gables-adjacent pockets of South Miami. Each one starts with a site measurement, not a guess. Call (850) 930-1813 to get yours measured properly.

Technical Specifications

• Frame materials: Aluminum or vinyl, selected per configuration and structural load requirement.
• Size range: Custom fabricated to order. No stock-size limits. The opening dictates the unit.
• Glass options: Laminated impact glass (PVB interlayer), Low-E insulated glass, tinted glass, clear glass.
• Finish options: White, almond, bronze, black, tan.
• Design pressure: Matched to your wind zone, up to +/-100. Never higher than your zone requires.
• Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers available per configuration, verified on your quote.
• Engineering basis: Florida Building Code (FBC) High-Velocity Hurricane Zone (HVHZ) requirements.

Hurricane & Compliance Performance

Laminated Impact Glass
The glass package uses a PVB (polyvinyl butyral) interlayer bonded between panes. Under impact, the glass may crack but it stays in the frame. That matters in South Miami, where wind-borne debris is a real threat during named storms.

Miami-Dade NOA / Florida Product Approval
Shaped units carry Notice of Acceptance and Florida Product Approval numbers issued per configuration. Your specific quote lists the numbers for your exact size and shape. We verify these before fabrication begins.

FBC / HVHZ Compliance
Every geometric and shaped window we sell in South Miami is engineered to Florida Building Code High-Velocity Hurricane Zone requirements. HVHZ is the strictest wind standard in the state, and Miami-Dade enforces it rigorously.

TAS 201 / 202 / 203 Testing Context
These products come from manufacturers who test under TAS 201 (large-missile impact), TAS 202 (cyclic wind-pressure loading), and TAS 203 (forced-entry resistance). That’s the protocol family HVHZ-rated products are tested under.

Design Pressure Matched to Your Wind Zone
Design pressures are matched to your wind zone, up to +/-100. Never higher. Over-specifying doesn’t make a window safer; it makes it heavier and more expensive. We match the rating to the structure and the location.

Energy Performance
Low-E and insulated glass options are available on most shaped configurations. If your shaped window faces west in South Miami, Low-E cuts a lot of afternoon heat. We’ll talk through glass packages when we measure.

Color & Glass Options

South Miami architecture ranges from 1920s Mediterranean to mid-century ranch to clean contemporary. The right frame color makes a shaped window feel like it was always there.

White suits the classic Florida look, especially on stucco homes with painted trim. Almond and tan blend with natural stone, barrel tile, and warm neutrals. Bronze reads more formal and works well on darker exteriors and contemporary builds. Black has become the default on modern and transitional South Miami homes because it frames the glass sharply and hides sightlines.

On the glass side, clear laminated impact glass is the baseline for maximum daylight and unobstructed views. Low-E insulated glass adds an energy-performance layer and reduces heat gain, useful for western and southern exposures. Tinted glass cuts glare and adds privacy without changing the exterior look much. We’ll help you match the glass to the room, not just the elevation. Call (850) 930-1813 and we’ll walk through samples.

Installation by Winslow Windows & Doors in South Miami

A shaped window is only as good as its installation. The NOA rating on a product assumes the unit was installed correctly. If the rough opening is out of square, the frame gets racked, the glass stresses unevenly, and the rated system is compromised. We see this regularly in South Miami remodels where original framing has settled or was never square to begin with.

Our installation process starts with a pre-install inspection. We measure the opening, check for square, verify the substrate, and confirm the structural surround before the unit is even fabricated. On install day, the unit is set level, plumb, and square. No shimming tricks to hide a bad opening. The perimeter gets AAMA 812 low-expansion foam sealant, and our installation practice follows AAMA 2400/2410 standards. We finish with a water test, full cleanup, and the documentation you need for your South Miami permit close-out.

South Miami has its own permitting process, and HVHZ jurisdictions are strict. We know what the building department wants to see: NOA or Florida Product Approval numbers on the submittal, product labeling on the units, and a clean installation record. Winslow Windows & Doors handles this every week. If you’re replacing a shaped window, adding one, or working on new construction in South Miami, call (850) 930-1813 and we’ll come out for a site measurement.

Frequently Asked Questions - Geometric & Shaped Windows

What wind zone and design pressure is the Geometric & Shaped Window rated for?
Design pressures are matched to your specific wind zone, up to +/-100, and never higher. Your exact rating depends on the size, shape, and location of the opening within the structure. We confirm the required design pressure for your South Miami address before fabrication. Call (850) 930-1813 for an exact quote, estimates are free.

What is the lead time for a custom shaped window?
Because every geometric and shaped unit is custom fabricated to order, lead times run longer than stock windows. Expect roughly six to ten weeks depending on configuration, glass package, and finish. We’ll give you a firm timeline when we quote the job. Call (850) 930-1813 to start the process.

Does my permit require a Miami-Dade NOA or Florida Product Approval submittal?
Yes, in almost every case in South Miami and Miami-Dade County, your permit application needs the NOA or Florida Product Approval numbers for the exact configurations being installed. Winslow Windows & Doors prepares this documentation as part of the job. We don’t leave you to figure it out alone.

Can I customize the size and configuration?
Yes. That’s the entire point of this product. Triangles, hexagons, octagons, arches, circles, and fully custom curves are all built to your opening. The frame, glass, finish, and muntin pattern are all selected per unit. If you can describe the opening, we can fabricate for it. Call (850) 930-1813 to schedule a free on-site measurement.

How do I maintain the frame and glass?
Wash the glass with mild soap and water, rinse the frame, and keep the sill track (if applicable) clear of debris. Check the perimeter sealant once a year, especially after storm season. South Miami’s salt air and intense sun are hard on everything, so a quick annual inspection catches small issues before they become leaks.

Get a Quote - Geometric & Shaped Windows in South Miami

If you have a shaped opening, an awkward angle, or a design idea that standard windows can’t serve, let’s talk. Winslow Windows & Doors starts every project with a free on-site measurement in South Miami. Call (850) 930-1813 to schedule yours, or to get a line-item quote on the configuration you have in mind.

Written by the team at Winslow Windows & Doors, serving South Miami, FL with hurricane-impact window and door installation across PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass product lines.
